Lumiko
863641
Downlight/spot/floodlight
Manufacturer part number: 863641
Serie: Led spots, inbouw
Type: LCB-SPOT-3,3EWW
EAN-code: 8716643056916
SKU Omnical: 1197992
Stock: 0.
Estimated lead time: 5 days *
PreOrder
K74
€
31,72
per item
€
25,82
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
863641 Lumiko Downlight/spot/floodlight

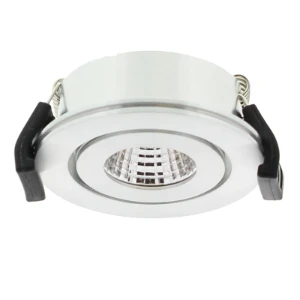

Lumiko Downlight/spot/floodlight Venice COB LED spot, Aluminium, 3,1W, 350mA, 2700K, IP44
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Type of control gear
LED operating device current-controlled
With control gear
No
Nominal voltage
(V)
8.8 - 8.8
Material housing
Aluminium
Colour housing
Aluminium
Light sharing
Symmetric
Beam angle
Medium beam 21-40°
Height/depth
(mm)
27
Outer diameter
(mm)
50
Degree of protection (IP)
IP44
With light source
Yes
Suitable for ceiling mounting
Yes
Suitable for clamp-mounting
Yes
Adjustability
Rotating and swivelling
Suitable for lamp power
(W)
3.1 - 3.1
Nominal current
(mA)
0 - 350
Max. system power
(W)
3.1
Colour temperature
(K)
2700 - 2700
Voltage type
DC
Rated luminous flux according to IEC 62722-2-1
(lm)
320
Colour of light
White
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Material cover
Glass transparent
No dim function
No
Light distributor
Diffuser lens/optic/panel
Light outlet
Direct
Luminous flux
(lm)
10 - 320
Built-in height/depth
(mm)
27
Number of poles
2
Connection type
Push-in clamp
Emergency power supply integrated
No
Colour consistency (McAdam ellipse)
SDCM1
Exchangeable control gear
Yes
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Built-in diameter
(mm)
45 - 48
E
Reflector colour
Silver
Dimmable
Yes
Stock and logistics
Height
4 cm
Width
7 cm
Depth
7 cm
Packaging
box
Weight
80 g
HS code
85414010
