Lumiance
3099390
Downlight/spot/floodlight
Manufacturer part number: 3099390
Serie: Inset Trend 75 Swing IP44 Outdoor
Type: INSET TREND SW IP44 OUTD AN EX
EAN-code: 8711971993902
SKU Omnical: 1234112
Stock: 0.
Estimated lead time: 7 days *
PreOrder
X20
€
28,00
per item
€
20,41
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

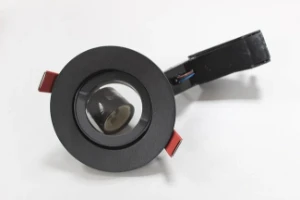

3099390 Lumiance Downlight/spot/floodlight
Lumiance Downlight/spot/floodlight INSET TR SW IP44 OUTD GU10 ZW
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp holder
GU10
With control gear
No
Width
(mm)
95
Nominal voltage
(V)
230 - 240
Material housing
Aluminium
Colour housing
Anthracite
Reflector
Other
Beam angle
Open beam/diffuse
Length
(mm)
95
Height/depth
(mm)
100
Protection class
II
Degree of protection (IP)
IP44
Impact strength
IK02
Luminaire with limited surface temperature, sign "D“
No
With movement sensor
No
With light source
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With light sensor
No
Suitable for lamp power
(W)
0 - 0
Max. system power
(W)
0
Colour temperature
(K)
0 - 0
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
0
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for low voltage cable system
No
Surface protection
Other
Surface brushed
No
LED nominal current at constant current
(mA)
0 - 0
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
None
Light outlet
Direct
Total harmonic distortion
0
Rated ambient temperature according to IEC62722-2-1
(°C)
0 - 0
Luminous flux
(lm)
0 - 0
Power factor
0
Built-in width
(mm)
0
Built-in height/depth
(mm)
0
Built-in length
(mm)
0
Type of wiring
Through wiring included
Conductor cross section
(mm²)
0
Connectable conductor cross section
(mm²)
0 - 0
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
0
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
None
Unified Glare Ratio (UGR)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Dimming DALI-2
No
Exchangeable control gear
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
(%)
0
Constant light output (CLO)
No
Max. number of luminaires per miniature circuit breaker B16
0
Max. number of luminaires per miniature circuit breaker C16
0
Suitable for wall mounting
No
Built-in diameter
(mm)
0 - 0
Operation by Bluetooth
No
Stock and logistics
Height
8.48 cm
Width
10.09 cm
Depth
13.11 cm
Packaging
box
Weight
0.232 kg
HS code
94051190
