Lumiance
3097943

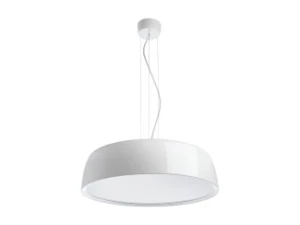

Pendant luminaire
Manufacturer part number: 3097943
Serie: Nephos V2
Type: NEPHOS 600 LED V2 WHT NW EB
EAN-code: 8711971979432
SKU Omnical: 4134367
Stock: 0.
Estimated lead time: 2-3 weeks *
PreOrder
X20
€
1.098,00
per item
€
800,44
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3097943 Lumiance Pendant luminaire
Lumiance Pendant luminaire NEPHOS 600 LED V2 wit NW STD
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED exchangeable
Suitable for number of lamps
2
Type of control gear
Electronic ballast
With control gear
No
Nominal voltage
(V)
220 - 240
Direct-/indirect proportion separately controllable
No
Colour housing
White
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
No
Reflector
Other
Light outlet
Direct
With suspension
No
Pendant length
(mm)
0 - 0
Protection class
I
Degree of protection (IP)
IP20
Luminaire with limited surface temperature, sign "D“
No
With light source
Yes
Suitable for emergency lighting
No
Voltage type
AC
Nominal current
(mA)
105.3 - 114.8
Rated luminous flux according to IEC 62722-2-1
(lm)
2127
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
80-89
LED nominal current at constant current
(mA)
0 - 0
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming programmable
No
Dimming DSI
No
Dimming RF
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Diffuser lens/optic/panel
Rated life time L70/B50 at 25 °C
(h)
120000
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
(W)
0 - 0
Max. system power
(W)
24
Luminaire efficacy
(lm/W)
89
Power factor
0.95
Height/depth
(mm)
200
Diameter
(mm)
600
Type of wiring
Through wiring included
Number of poles
0
Conductor cross section
(mm²)
0
Unified Glare Ratio (UGR)
20
Dimming DALI-2
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Exchangeable control gear
No
Constant light output (CLO)
No
Colour temperature adjustable
No
Stock and logistics
Height
28 cm
Width
62 cm
Depth
63 cm
Packaging
box
Weight
6.8 kg
HS code
94051940
