Lumiance
3031817

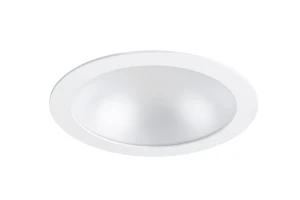

Downlight/spot/floodlight
Manufacturer part number: 3031817
Serie: Syl-lighter LED II 220
Type: SYL-LIGHTER LED II 220 21W NW
EAN-code: 8711971318170
SKU Omnical: 1513676
Stock: 0.
Estimated lead time: 14 days *
PreOrder
X20
€
176,00
per item
€
128,30
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3031817 Lumiance Downlight/spot/floodlight
Lumiance Downlight/spot/floodlight SYL-LIGHTER .LED II 205 21W NW
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED exchangeable
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
White
Reflector
High-gloss
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Height/depth
(mm)
60
Outer diameter
(mm)
220
Protection class
II
Degree of protection (IP)
IP44
Impact strength
IK07
Luminaire with limited surface temperature, sign "D“
No
With movement sensor
No
With light source
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With light sensor
No
Suitable for lamp power
(W)
0 - 0
Max. system power
(W)
21
Colour temperature
(K)
4000 - 4000
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
1989
Colour of light
White
Colour rendering index CRI
80-89
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for low voltage cable system
No
Material cover
Plastic, opal
Surface brushed
No
LED nominal current at constant current
(mA)
0 - 0
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
None
Light outlet
Direct
Total harmonic distortion
20
Rated life time L70/B50 at 25 °C
(h)
100000
Rated ambient temperature according to IEC62722-2-1
(°C)
-10 - 25
Luminous flux
(lm)
1989 - 1989
Power factor
0.9
Built-in width
(mm)
0
Built-in height/depth
(mm)
0
Built-in length
(mm)
0
Conductor cross section
(mm²)
0
Connectable conductor cross section
(mm²)
0 - 0
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
95
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
850 °C - 30 s
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM5
Unified Glare Ratio (UGR)
24
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Dimming DALI-2
No
Exchangeable control gear
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
(%)
0
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16
0
Max. number of luminaires per miniature circuit breaker C16
32
Suitable for wall mounting
No
Built-in diameter
(mm)
0 - 0
E
Operation by Bluetooth
No
Stock and logistics
Height
7.5 cm
Width
25 cm
Depth
25 cm
Packaging
box
Weight
0.969 kg
HS code
94051190
