Legrand
8496101
Movement sensor / presence detector complete
Manufacturer part number: 8496101
Serie: PIR
Type: PIR
EAN-code: 8714161299860
SKU Omnical: 1770462
Stock: 0.
Estimated lead time: 6 days *
PreOrder
L37
€
113,84
per item
€
80,48
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
8496101 Legrand Movement sensor / presence detector complete

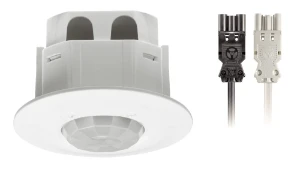

Legrand Movement sensor / presence detector complete PIR detector GST18i3
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
Yes
Forced switch off
Yes
Animal zone
No
Creep-under protection
Yes
Networkable
No
Optimum mounting height
(m)
2.5
Staircase monitoring
No
Max. transmission range sideways
(m)
8
Max. transmission range frontally
(m)
8
Diameter detection range on floor
(m)
8
Suitable for wireless transmission
Yes
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Other
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9006
Transparent
No
Degree of protection (IP)
IP41
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
10
Max. duty cycle
(min)
10
Detection angle horizontal
(°)
360 - 360
Response value luminosity
(lx)
10 - 1275
Temperature
(°C)
-5 - 45
Substation input
No
Frequency
(Hz)
50 - 60
With alarm function
No
Depth
(mm)
50.5
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Switch-off delay
(s)
0
Switching-on delay
(s)
0
Suitable for C-load
Yes
Number of switching zones
1
Forced switch on
No
Scan angle
(°)
48
Max. presence range
(m²)
50
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Connection type
Other
Anti-bacterial treatment
No
Min. starting current
(A)
0
Diameter
(mm)
78
Built-in depth
(mm)
49
Built-in diameter
(mm)
65
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Stock and logistics
Packaging
item
Weight
0.41 kg
HS code
85365080
Country of Origin
NL
