Ledvance
4058075290891
Electrical unit for light-line system
Manufacturer part number: 4058075290891
Serie:
Type: TRUSYS PFM 70W/4000K W LEDV
EAN-code: 4058075290891
SKU Omnical: 1604414
Stock: 0.
Estimated lead time: 11 days *
PreOrder
YYD
€
244,91
per item
€
187,11
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
4058075290891 Ledvance Electrical unit for light-line system
Ledvance Electrical unit for light-line system TruSys® PERFORMANCE WIDE 70 W/4000 K
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Lamp holder
None
Suitable for number of lamps
0

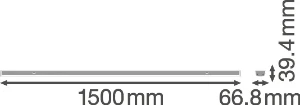

Width
(mm)
66.8
Type of control gear
Electronic transformer
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Material housing
Steel
Colour housing
White
Reflector
None
Light sharing
Symmetric
Light outlet
Direct
Length
(mm)
1500
Protection class
I
Degree of protection (IP)
IP20
With light source
Yes
Voltage type
AC
Nominal current
(mA)
380 - 380
Height/depth
(mm)
39.4
Rated luminous flux according to IEC 62722-2-1
(lm)
11200
Colour of light
White
Colour temperature
(K)
4000 - 4000
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming manufacturer's proprietary system
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Focal lens
Beam angle
Extreme wide beam >80°
Colour consistency (McAdam ellipse)
SDCM3
Rated life time L70/B50 at 25 °C
(h)
55000
Rated life time L80/B10 at 25 °C
(h)
50000
Filament test according to IEC 60695-2-11
650 °C - 30 s
Emergency power supply integrated
No
Suitable for lamp power
(W)
70 - 70
Max. system power
(W)
70
Luminaire efficacy
(lm/W)
160
Power factor
0.9
Type of wiring
Suitable for through wiring
Number of poles
2
Connection type
Other
Exchangeable control gear
No
Beam angle adjustable
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Operation by Bluetooth
No
Rated ambient temperature according to IEC62722-2-1
(°C)
-25 - 40
Stock and logistics
Height
0.09 m
Width
1.57 m
Depth
0.08 m
Packaging
item
Weight
1.835 kg
HS code
94051190
