Lapp
2170488
Data and communication cable
Manufacturer part number: 2170488
Serie: ETHERLINE
Type: Profi. 4p cabl. Cat.
EAN-code: 4044774839622
SKU Omnical: 1130827
Stock:
339 x 1 meter.
Delivery time: 1-2 business days.
InStock
YLV
€
883,87
per 100 meter
€
600,15
per 100 meter
EUR | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2170488 Lapp Data and communication cable

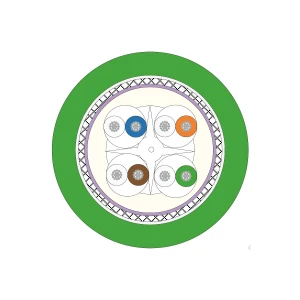

Lapp Data and communication cable ETHERLINE FD P CAT.6 4X2XAWG26 - 1 MTR
Datasheet
Conductor material
Copper
Conductor surface
Tinned
Nominal cross section conductor
(mm²)
2
AWG size
Other
Conductor category
Class 6 = very flexible
Number of cores
4
Stranding element
Pairs
Material core insulation
Polyolefin
Specification core insulation
Other
Core identification
Colour
Screen over stranding element
None
Screen over stranding
Foil + braiding
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
Green
Cable geometry
Round
Halogen free according to EN 60754-1/2
No
Halogen free according to IEC 60754-2
No
Low smoke (according to EN 61034-2)
No
Low smoke according to IEC 61034-2
No
Oil resistant according to IEC 60811-404
No
Outer diameter approx.
(mm)
7.8
Min. permitted bending radius, moving application with forced guidance
(mm)
81
Min. permitted bending radius, moving application/free movement
(mm)
81
Min. permitted bending radius, stationary application/permanent installation
(mm)
32.4
Permitted cable outer temperature during assembling/handling
(°C)
-30 - 0
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
NVP value
(%)
67
UV resistant
Yes
Yes
No
No
No
No
No
No
No
Stock and logistics
Weight
0.063 kg
HS code
85444995
Country of Origin
DE
