Jobarco
2116900
Power cable >= 1 kV, for permanent installation
Manufacturer part number: 2116900
Serie:
Type: 9 GKW-AX
EAN-code: 7611832010520
SKU Omnical: 2666184
Stock: 0.
Estimated lead time: 5 days *
PreOrder
J09
€
6,79
per meter
€
2,91
per meter
EUR | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

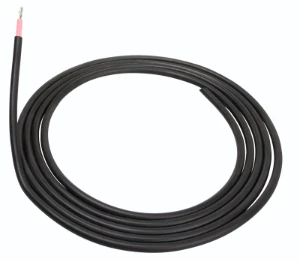

2116900 Jobarco Power cable >= 1 kV, for permanent installation
Jobarco Power cable >= 1 kV, for permanent installation Radox 9 GKW-AX tractiekabel 1,5 mm2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Conductor surface
Tinned
Nominal cross section conductor
(mm²)
1.5
Conductor category
Class 5 = flexible
Shape of conductor
Round
Number of cores
1
Material core insulation
Polyolefin
Specification core insulation
Other
Core identification
Numbers
Laminated sheath
No
Fibre optic elements
No
Inner semi-conducting layer
No
Outer semi-conducting layer
No
Screen
No
Drain wire
No
Lead sheath
No
Number of pilot/reduced conductors
0
Nominal cross section pilot/reduced conductor
(mm²)
0
Concentric conductor
None
Armouring
No
Material outer sheath
Polyolefin
Specification material outer sheath
Other
Colour outer sheath
Black
Cable geometry
Round
Longitudinal water blocking conductors
No
Longitudinal water blocking screen
No
Halogen free according to EN 60754-1/2
Yes
Halogen free according to IEC 60754-2
Yes
Flame retardant
According to IEC/EN 60332-3-24
Low smoke (according to EN 61034-2)
Yes
Low smoke according to IEC 61034-2
Yes
Insulation integrity according to IEC 60331
No
Oil resistant (according to IEC 60811-404)
Yes
Outer diameter approx.
(mm)
4.4
Min. permitted bending radius, stationary application/permanent installation
(mm)
18
Max. conductor temperature
(°C)
132
Permitted cable outer temperature during assembling/handling
(°C)
-25 - 90
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 120
Nominal voltage U0
(kV)
3.6
Nominal voltage U
(kV)
6
Suitable as installation cable
Yes
Certified for shipboard application
No
Suitable as medium-voltage cable
Yes
Suitable as high-voltage cable
No
Certified as airport lighting cable
No
Stock and logistics
Packaging
length
Weight
0.036 kg
HS code
85444995
