ICC
C2201000BM10G

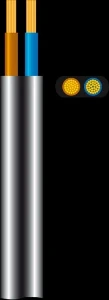

Power cable < 1 kV, for moving application
Manufacturer part number: C2201000BM10G
Serie: VMVS plat
Type: H03VVH2-F 2x0,75mm2
EAN-code: 8712251084280
SKU Omnical: 1039464
Stock: 0.
Estimated lead time: 104 days *
PreOrder
D09
€
158,50
per 100 items
€
103,02
per 100 items
EUR | Excluding VAT
Quantity
x 100 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
C2201000BM10G ICC Power cable < 1 kV, for moving application
ICC Power cable < 1 kV, for moving application Mantelsnoer plat, 2x0,75mm2, grijs
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal cross section conductor
(mm²)
0.75
Conductor category
Class 5 = flexible
Number of cores
2
Material core insulation
Polyvinyl chloride (PVC)
Core identification
Colour
Material outer sheath
Polyvinyl chloride (PVC)
Colour outer sheath
Grey
None
None
None
Halogen free according to EN 60754-1/2
No
Flame retardant
No
Low smoke (according to EN 61034-2)
No
Oil resistant according to IEC 60811-404
No
Cable width approx.
(mm)
5.2
Cable height approx.
(mm)
3.2
Outer diameter approx.
(mm)
0
Permitted cable outer temperature during assembling/handling
(°C)
5 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-10 - 70
Nominal voltage U0
(V)
300
Nominal voltage U
(V)
300
Screen
No
Armouring/reinforcement
None
Max. conductor temperature
(°C)
0
Stock and logistics
Height
1 mm
Width
1 mm
Depth
1 mm
HS code
85444995
