Harting
09330162716
Contact insert for rectangular connectors
Manufacturer part number: 09330162716
Serie:
Type: Han 16 ES-F insert
EAN-code: 5713140051508
SKU Omnical: 1004412
Stock:
19 items.
Delivery time: 1-2 business days.
InStock
XZX
€
35,82
per item
€
19,45
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
09330162716 Harting Contact insert for rectangular connectors

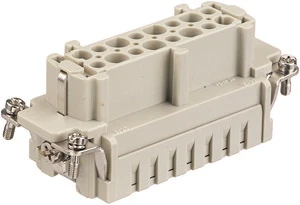

Harting Contact insert for rectangular connectors Han 16 ES-F insert
Datasheet
Contact insert without contacts
No
Contact type
Bus
Shape
Rectangular
With housing
No
Number of poles
16
Diameter plug-in contact
(mm)
2.5
Modular version
No
Material connector insert
Thermoplastic
Rated current In
(A)
16
Ambient temperature
(°C)
-40 - 125
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Type of electric connection
Spring clamp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.14 - 2.5
Material of contact surface
Silver
Material of contact insert
Thermoplastic
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Number of power contacts
16
Operating temperature
(°C)
-40 - 125
Min. number of insertion cycles
500
Stock and logistics
Packaging
Package
Weight
0.089 kg
HS code
85366990
Country of Origin
DE
