Hager
HBT250H
Residual current circuit breaker (RCCB) module
Manufacturer part number: HBT250H
Serie: h3+
Type: HBT250H
EAN-code: 3250613150860
SKU Omnical: 3363660
Stock: 0.
Estimated lead time: 7 days *
PreOrder
ZFJ
€
1.425,00
per item
€
1.272,52
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

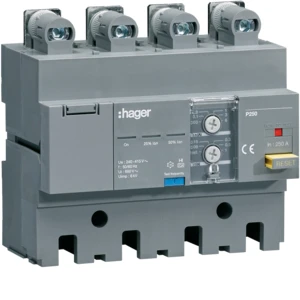

HBT250H Hager Residual current circuit breaker (RCCB) module
Hager Residual current circuit breaker (RCCB) module Aardlekelement P250 4P 250 A Idn 30 mA tot 6 A instelbaar
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
220 - 415
Nominal current
(A)
250
Rated fault current adjustable
Yes
Rated fault current
(A)
0.03 - 6
Max. delay time
(ms)
1000
Delay adjustable
Yes
Number of poles
4
Leakage current type
A
Surge current capacity
(kA)
3
Frequency
50/60 Hz
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Connectable conductor cross section solid-core
(mm²)
35 - 185
Connectable conductor cross section multi-wired
(mm²)
35 - 150
Anti-nuisance tripping version
Yes
With interlocking device
Yes
Degree of protection (IP)
IP40
Pollution degree
3
Ambient temperature during operating
(°C)
-25 - 70
Stock and logistics
Height
120 mm
Width
155 mm
Depth
190 mm
Packaging
box
Weight
1398 g
HS code
85363090
