Hager
EEN100
Twilight switch for distribution board
Manufacturer part number: EEN100
Serie:
Type: EEN100
EAN-code: 3250617579308
SKU Omnical: 1183241
Stock: 0.
Estimated lead time: 6 days *
PreOrder
ZOO
€
233,60
per item
€
178,47
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

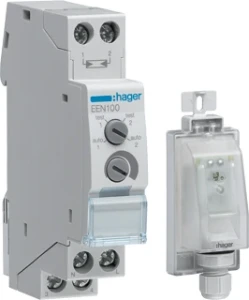

EEN100 Hager Twilight switch for distribution board
Hager Twilight switch for distribution board Schemerschakelaar inclusief opbouwsensor EEN003
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
230
Rated frequency
(Hz)
50 - 60
Max. incandescent lamp load
(W)
2300
Max. load fluorescent lamp
(VA)
1000
Max. load fluorescent lamp (Duo circuit)
(VA)
1000
Max. load fluorescent lamp (parallel compensated)
(VA)
1000
Max. switching current (cos phi = 0.6)
(A)
10
Rated switch current
(A)
10
Adjustment range brightness value
(lx)
5 - 2000
With programmable overnight shutoff
No
Push button input
No
Rated voltage light sensor
(V)
230
Max. conductor length light sensor
(m)
100
Protection class light sensor
II
Mounting method light sensor
Other
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth
(mm)
17.8
Degree of protection (IP)
IP20
Degree of protection (IP) light sensor
IP55
Stock and logistics
Height
0.153 m
Width
0.097 m
Depth
0.074 m
Packaging
box
Weight
0.225 kg
HS code
85365080
Country of Origin
FR
