Hager
CDB640D
Residual current circuit breaker (RCCB)
Manufacturer part number: CDB640D
Serie:
Type:
EAN-code: 3250611627678
SKU Omnical: 3368896
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H02
€
895,00
per item
€
581,75
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

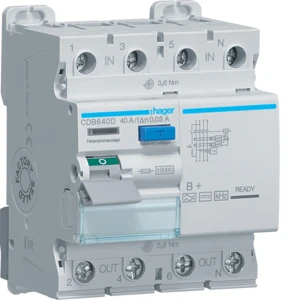

CDB640D Hager Residual current circuit breaker (RCCB)
Hager Residual current circuit breaker (RCCB) Aardlekschakelaar 4-polig 40 A 30 mA klasse B+
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated voltage
(V)
400
Rated current
(A)
40
Rated fault current
(A)
0.03
Mounting method
DIN rail
Leakage current type
B+
Selective protection
No
Short-circuit breaking capacity (Icw)
(kA)
10
Surge current capacity
(kA)
5
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Built-in depth
(mm)
70
Short-time delayed tripping
No
Rated insulation voltage Ui
(V)
400
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 70
Pollution degree
2
Connectable conductor cross section multi-wired
(mm²)
1 - 16
Connectable conductor cross section solid-core
(mm²)
1 - 25
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
100 mm
Width
75 mm
Depth
80 mm
Packaging
box
Weight
425 g
HS code
85363030
