7P.23.8.275.1020

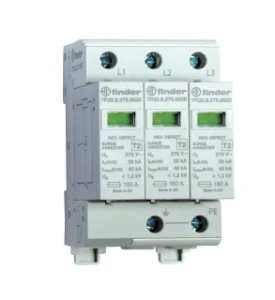

Surge protection device for power supply systems
Manufacturer part number: 7P.23.8.275.1020
Serie: 7P
Type: 7P.23.8.275.1020
EAN-code: 8012823344393
SKU Omnical: 2492035
Stock: 0.
Estimated lead time: 7 days *
PreOrder
YOP
€
202,07
per item
€
147,31
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7P.23.8.275.1020 Finder Surge protection device for power supply systems
Finder Surge protection device for power supply systems FIN SPD TYPE 2, 3FASE/3VAR.
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
TN-C
Type of poles
3+N/PE
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
230
Max. continuous voltage AC
(V)
275
Max. continuous voltage DC
(V)
350
Voltage protection level
(kV)
1.2
Voltage protection level L-N
(kV)
1.2
Voltage protection level N-PE
(kV)
1.2
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
3 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
No
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
Yes
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
3
Short-circuit breaking capacity (Isccr)
(kA)
50
Max. discharge surge current (8/20)
(kA)
40
Max. overcurrent protection device, parallel connection (fuse)
(A)
160
Stock and logistics
Height
80 mm
Width
65 mm
Depth
120 mm
Packaging
box
Weight
0.391 kg
HS code
85363030
Country of Origin
CZ
