11.31.8.230.0000
Twilight switch for distribution board
Manufacturer part number: 11.31.8.230.0000
Serie: 11
Type: 11.31.8.230.0000
EAN-code: 8012823347837
SKU Omnical: 2075512
Stock: 0.
Estimated lead time: 7 days *
PreOrder
F13
€
50,71
per item
€
36,97
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

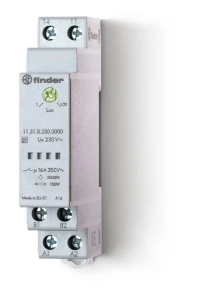

11.31.8.230.0000 Finder Twilight switch for distribution board
Finder Twilight switch for distribution board FIN SCHEMERSCHAK 1M 16A 230VAC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
230
Rated frequency
(Hz)
50 - 60
Max. incandescent lamp load
(W)
2000
Max. load fluorescent lamp
(VA)
1000
Max. load fluorescent lamp (Duo circuit)
(VA)
1000
Max. load fluorescent lamp (parallel compensated)
(VA)
750
Max. switching current (cos phi = 0.6)
(A)
18
Rated switch current
(A)
16
Adjustment range brightness value
(lx)
1 - 100
With programmable overnight shutoff
No
Push button input
No
Rated voltage light sensor
(V)
5
Max. conductor length light sensor
(m)
50
Protection class light sensor
III
Mounting method light sensor
Wall surface mounted
Mounting method
DIN rail
Width in number of modular spacings
17.5
Built-in depth
(mm)
60.8
Degree of protection (IP)
IP20
Degree of protection (IP) light sensor
IP68
Material
Plastic
Colour
White
Max. switching power LED
(W)
400
Stock and logistics
Height
90 mm
Width
53 mm
Depth
125 mm
Packaging
box
Weight
0.151 kg
HS code
85364900
Country of Origin
IT
