Eupen
9975096
Power cable < 1 kV, for moving application
Manufacturer part number: 9975096
Serie:
Type: H05/H07 BQ-F
EAN-code: 5413260720901
SKU Omnical: 1038715
Stock:
400 x 1 meter.
Delivery time: 1-2 business days.
InStock
YIO
€
454,70
per 100 meter
€
207,80
per 100 meter
EUR | Excluding VAT
Quantity
x 1 meter
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
9975096 Eupen Power cable < 1 kV, for moving application

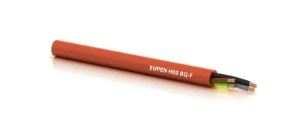

Eupen Power cable < 1 kV, for moving application H07BQ-F 3G1,5MM2 UNGL R2003 ORANJ
Datasheet
Conductor material
Copper
Conductor surface
Bare
Nominal cross section conductor
(mm²)
1.5
Conductor category
Class 5 = flexible
Conductor resistance at 20 °C
(Ohm/km)
13.3
Number of cores
3
Stranding element
No
Material core insulation
Rubber
Specification core insulation
Rubber - ethylene propylene rubber (EPR)
Core identification according to HD 308 S2
Yes
Core identification
Colour
Screen over stranding element
None
Screen over stranding
None
Suspension element
None
Material outer sheath
Polyurethane (PUR)
Specification material outer sheath
Other
Colour outer sheath
Orange
Cable geometry
Round
Torsion resistant
No
None
None
None
None
Halogen free according to EN 60754-1/2
Yes
Flame retardant
No
Low smoke (according to EN 61034-2)
No
Low temperature resistant according to EN 60811-504+505+506
Yes
Oil resistant according to IEC 60811-404
No
Outer diameter approx.
(mm)
8.3
Permitted cable outer temperature during assembling/handling
(°C)
-40 - 80
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Nominal voltage U0
(V)
450
Nominal voltage U
(V)
750
Shape of conductor
Round
Weight
(kg/km)
97
Drain wire
No
Screen
No
Protective barrier
None
Armouring/reinforcement
None
Number of pilot/reduced conductors
0
Max. conductor temperature
(°C)
90
Number of stranding elements
0
No
No
No
No
No
No
Low smoke according to IEC 61034-2
No
28
(mm)
0.25
Stock and logistics
Packaging
Ring
Weight
0.097 kg
HS code
85444995
Country of Origin
BE
