ETI
481000110

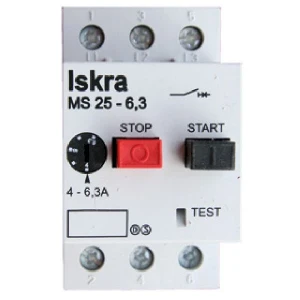

Motor protection circuit-breaker
Manufacturer part number: 481000110
Serie: Motorbeveiliging MS25
Type: 3p
EAN-code: 3838895576372
SKU Omnical: 1210609
Stock: 0.
Estimated lead time: 5 days *
PreOrder
SSL Connection
WorldWide Shipping
481000110 ETI Motor protection circuit-breaker
ETI Motor protection circuit-breaker Motorbeveiliging MS25 6,30 - 10 A 3p
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Overload release current setting
(A)
6.3 - 10
Adjustment range undelayed short-circuit release
(A)
0 - 0
Phase failure sensitive
No
Switch off technique
Thermomagnetic
Width
(mm)
45
Rated permanent current Iu
(A)
10
Rated operation power at AC-3, 230 V
(kW)
2.5
Rated operation power at AC-3, 400 V
(kW)
4
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device slide-in technique (withdrawable)
With integrated auxiliary switch
No
With integrated under voltage release
No
Number of poles
3
Rated short-circuit breaking capacity lcu at 400 V, AC
(kA)
6
Degree of protection (IP)
IP20
Height
(mm)
80
Depth
(mm)
73.5
Type of control element
Push button
Stock and logistics
Height
0.083 cm
Width
0.045 cm
Depth
0.08 cm
Packaging
box
Weight
0.27 kg
HS code
85365019
