ETI
433023184
Miniature circuit breaker (MCB)
Manufacturer part number: 433023184
Serie:
Type: 3p+n
EAN-code: 3838895959205
SKU Omnical: 4233849
Stock: 0.
Estimated lead time: 5 days *
PreOrder
HE0
€
198,22
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
433023184 ETI Miniature circuit breaker (MCB)

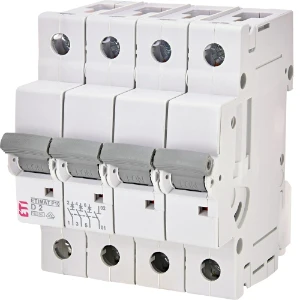

ETI Miniature circuit breaker (MCB) ETIMAT P10 D 2A 4 module 3p+n 10kA 1901444
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Release characteristic
D
Number of poles (total)
4
Rated current
(A)
2
Rated voltage
(V)
415
Voltage type
AC/DC
Current limiting class
3
Concurrently switching neutral conductor
Yes
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4
Built-in depth
(mm)
69
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Number of protected poles
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
10
Frequency
(Hz)
50 - 60
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-40 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Stock and logistics
Height
7 cm
Width
7.1 cm
Depth
8.8 cm
Packaging
box
Weight
0.5 kg
HS code
85362010
