ETI
432000373
Residual current circuit breaker (RCCB)
Manufacturer part number: 432000373
Serie: Aardlekschakelaar EFI-P
Type: 4p
EAN-code: 3838895851455
SKU Omnical: 3363869
Stock: 0.
Estimated lead time: 5 days *
PreOrder
HD6
€
173,26
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

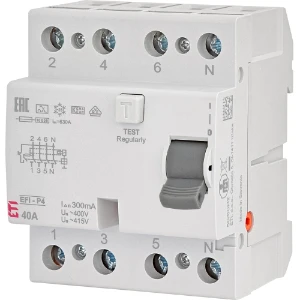

432000373 ETI Residual current circuit breaker (RCCB)
ETI Residual current circuit breaker (RCCB) Aardlekschakelaar EFI-P4 40A 300mA 4p 2061532
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated voltage
(V)
400
Rated current
(A)
40
Rated fault current
(A)
0.3
Mounting method
DIN rail
Leakage current type
A
Selective protection
No
Short-circuit breaking capacity (Icw)
(kA)
10
Surge current capacity
(kA)
0.4
Frequency
50/60 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Built-in depth
(mm)
68
Short-time delayed tripping
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 55
Pollution degree
2
Connectable conductor cross section multi-wired
(mm²)
0 - 25
Connectable conductor cross section solid-core
(mm²)
0 - 35
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
6.8 cm
Width
7.2 cm
Depth
8.8 cm
Packaging
box
Weight
0.303 kg
HS code
85362010
