Epic
10196100

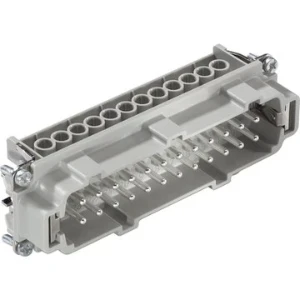

Contact insert for rectangular connectors
Manufacturer part number: 10196100
Serie: EPIC H-B
Type: H-BE 24
EAN-code: 4044773586152
SKU Omnical: 1148266
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YLC
€
1.054,44
per 100 items
€
715,96
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
10196100 Epic Contact insert for rectangular connectors
Epic Contact insert for rectangular connectors EPIC H-BE 24 SS
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact insert without contacts
No
Contact type
Pin
Number of poles
24
Diameter plug-in contact
(mm)
2.5
Material connector insert
Thermoplastic
Rated current In
(A)
16
Ambient temperature
(°C)
-40 - 125
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Type of electric connection
Screw connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.5 - 2.5
Material of contact surface
Silver
Material contact
Brass
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Stock and logistics
Packaging
box
Weight
115 g
HS code
85366990
Country of Origin
DE
