Epic
10186400

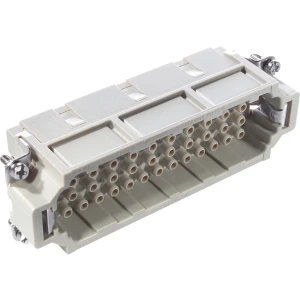

Contact insert for rectangular connectors
Manufacturer part number: 10186400
Serie: EPIC H-E
Type: H-EE 46
EAN-code: 4044773587319
SKU Omnical: 2377953
Stock:
80 items.
Delivery time: 1-2 business days.
InStock
YLC
€
2.810,47
per 100 items
€
1.908,31
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
10186400 Epic Contact insert for rectangular connectors
Epic Contact insert for rectangular connectors H-EE 46 SCM MALE INSERT 1-46
Datasheet
Contact insert without contacts
Yes
Contact type
Pin
Number of poles
46
Diameter plug-in contact
(mm)
2.5
Material connector insert
Thermoplastic
Rated current In
(A)
16
Ambient temperature
(°C)
-40 - 125
Rated voltage
(V)
500
Rated surge voltage
(kV)
6
Over voltage category
III
Pollution degree
3
Type of electric connection
Crimp connection
With wire protection
Yes
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Material of contact surface
Silver
Material contact
Brass
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Stock and logistics
Packaging
box
Weight
75.2 g
HS code
85472000
Country of Origin
DE
