Eaton
242785
Miniature circuit breaker (MCB)
Manufacturer part number: 242785
Serie: xPole
Type: PLZ6-B16/1N-MW
EAN-code: 4015082427856
SKU Omnical: 1047410
Stock:
94 items.
Delivery time: 1-2 business days.
InStock
M76
€
60,54
per item
€
35,90
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

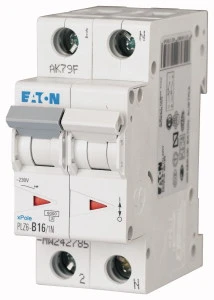

242785 Eaton Miniature circuit breaker (MCB)
Eaton Miniature circuit breaker (MCB) Installatie-automaat (MCB) PLZ6, 16A, 1P+N, B-kar., 6ka
Datasheet
Rated current
(A)
16
Number of poles (total)
2
Concurrently switching neutral conductor
Yes
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
0
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
0
Rated voltage
(V)
230
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
2
Built-in depth
(mm)
70.5
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
No
Rated insulation voltage Ui
(V)
440
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 75
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
No
Power loss
(W)
2.7
Stock and logistics
Height
0.075 m
Width
0.037 m
Depth
0.086 m
Packaging
item
Weight
0.23 kg
HS code
85362010
Country of Origin
RO
