Eaton
197216
Logic module
Manufacturer part number: 197216
Serie: Easy
Type: EASY-E4-AC-12RCX1
EAN-code: 4015080892779
SKU Omnical: 1236242
Stock: 0.
Estimated lead time: 8 days *
PreOrder
M93
€
130,00
per item
€
126,23
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

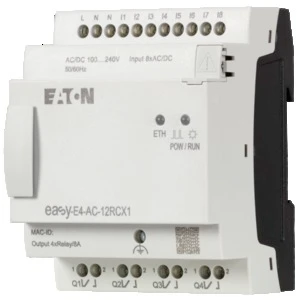

197216 Eaton Logic module
Eaton Logic module Easy E4, 100 - 240 V AC, 110 - 220 V DC, 8DI, 4DQ relais, zonder displ
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Supply voltage AC 50 Hz
(V)
85 - 264
Supply voltage AC 60 Hz
(V)
85 - 264
Supply voltage DC
(V)
85 - 264
Voltage type of supply voltage
AC
Switching current
(A)
8
Width
(mm)
72
Number of analogue inputs
0
Number of analogue outputs
0
Number of digital inputs
8
Number of digital outputs
4
With relay output
Yes
Number of HW-interfaces industrial Ethernet
1
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With optical interface
No
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Radio standard UMTS
No
IO link master
No
Redundancy
No
With display
No
Degree of protection (IP)
IP20
Basic device
Yes
Expandable
Yes
Expansion device
No
With time switch clock
Yes
Rail mounting possible
Yes
Wall mounting/direct mounting
Yes
Front built-in possible
Yes
Rack-assembly possible
No
Suitable for safety functions
No
Category according to EN 954-1
None
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Height
(mm)
90
Depth
(mm)
58
SIL according to IEC 61508
None
Power consumption
(W)
4
No
Yes
No
No
No
Yes
Yes
No
Yes
Yes
No
No
No
Stock and logistics
Height
0.095 m
Width
0.078 m
Depth
0.07 m
Packaging
item
Weight
0.268 kg
HS code
85371091
Country of Origin
EE
