Eaton
191796

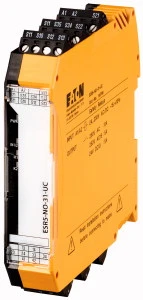

Device for monitoring of safety-related circuits
Manufacturer part number: 191796
Serie: ESR
Type: ESR5-NO-31-UC
EAN-code: 4015081923151
SKU Omnical: 2542283
Stock:
44 items.
Delivery time: 1-2 business days.
InStock
M87
€
426,75
per item
€
301,71
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
191796 Eaton Device for monitoring of safety-related circuits
Eaton Device for monitoring of safety-related circuits Veiligheidsrelais (24-230Vac/dc), 3 vrijgave paden , 1 meldc.
Datasheet
Model
Basic device
Suitable for monitoring of position switches
No
Suitable for monitoring of emergency-stop circuits
Yes
Suitable for monitoring of valves
No
Suitable for monitoring of optoelectronic protection equipment
Yes
Width
(mm)
22.5
Suitable for monitoring of tactile sensors
No
Suitable for monitoring of magnetic switches
Yes
Suitable for monitoring of proximity switches
No
Type of electric connection
Screw connection
Rail mounting possible
Yes
Rated control supply voltage at AC 50 Hz
(V)
24 - 230
Rated control supply voltage at AC 60 Hz
(V)
24 - 230
Rated control supply voltage at DC
(V)
24 - 230
Voltage type for actuating
AC/DC
With detachable clamps
Yes
Evaluation inputs
One- and two-channel
With start input
Yes
With muting function
No
With feedback circuit
Yes
Number of outputs, safety related, undelayed, with contact
0
Number of outputs, safety related, delayed, with contact
0
Number of outputs, safety related, undelayed, semiconductors
0
Number of outputs, safety related, delayed, semiconductors
0
Number of outputs, signalling function, undelayed, with contact
0
Number of outputs, signalling function, delayed, with contact
0
Number of outputs, signalling function, undelayed, semiconductors
0
Number of outputs, signalling function, delayed, semiconductors
0
Category according to EN 954-1
None
Type of safety according to IEC 61496-1
None
Stop category according to IEC 60204
0
Performance level according to EN ISO 13849-1
Level e
With approval for TÜV
No
With approval for BG BIA
No
With approval according to UL
Yes
Height
(mm)
113
Depth
(mm)
114.5
Release-delay
(s)
0 - 0
SIL according to IEC 61508
3
Power consumption
(W)
2.9
Voltage type of supply voltage
AC/DC
Supply voltage AC 50 Hz
(V)
24 - 230
Supply voltage AC 60 Hz
(V)
24 - 230
Supply voltage DC
(V)
24 - 230
Type of control voltage 1
AC/DC
Control voltage 1
(V)
24 - 230
Type of control voltage 2
AC/DC
Control voltage 2
(V)
24 - 230
Voltage type (operating voltage)
AC/DC
Operating voltage at AC 50 Hz
(V)
24 - 230
Operating voltage at AC 60 Hz
(V)
24 - 230
Operating voltage at DC
(V)
24 - 230
Rated switch current
(A)
5
Stock and logistics
Height
0.026 m
Width
0.113 m
Depth
0.117 m
Packaging
item
Weight
0.232 kg
HS code
85364900
Country of Origin
DE
