Eaton
184765

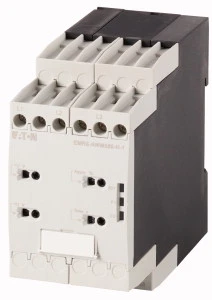

Phase monitoring relay
Manufacturer part number: 184765
Serie: EMR
Type: EMR6-AWM580-H-1
EAN-code: 4015081788019
SKU Omnical: 1301575
Stock: 0.
Estimated lead time: 8 days *
PreOrder
M87
€
305,08
per item
€
215,69
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
184765 Eaton Phase monitoring relay
Eaton Phase monitoring relay Fasevolgorde, fase-uitval, Over- of onderspanning, Asymmetrie, 300 - 5
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Type of electric connection
Screw connection
With detachable clamps
No
Rated control supply voltage at AC 50 Hz
(V)
350 - 580
Rated control supply voltage at AC 60 Hz
(V)
350 - 580
Rated control supply voltage at DC
(V)
0 - 0
Width
(mm)
45
Voltage type for actuating
AC
Phase sequence monitoring
Yes
Phase failure detection
Yes
Function under voltage detection
Yes
Function over voltage detection
Yes
Phase imbalance monitoring
Yes
Voltage measuring range
(V)
350 - 580
Min. adjustable delay-on energization time
(s)
0.1
Max. permitted delay-on energization time
(s)
30
Min. adjustable off-delay time
(s)
0.1
Max. permitted off-delay time
(s)
30
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Height
(mm)
85.6
Depth
(mm)
107
External power supply required
No
Voltage type of supply voltage
AC
Supply voltage AC 50 Hz
(V)
350 - 580
Supply voltage AC 60 Hz
(V)
350 - 580
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
(V)
350 - 580
Operating voltage at AC 60 Hz
(V)
350 - 580
Rated switch current
(A)
4
Stock and logistics
Height
0.095 m
Width
0.05 m
Depth
0.105 m
Packaging
item
Weight
0.163 kg
HS code
85364900
Country of Origin
DE
