Eaton
1814413
Switch disconnector
Manufacturer part number: 1814413
Serie: Dumeco
Type: DMV-400N/4
EAN-code: 8711426422711
SKU Omnical: 1010860
Stock:
66 items.
Delivery time: 1-2 business days.
InStock
M86
€
597,98
per item
€
534,00
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

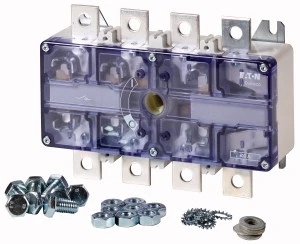

1814413 Eaton Switch disconnector
Eaton Switch disconnector Lastscheider DUMECO 400A 4P, M10, zonder as en draaigreep
Datasheet
Version as main switch
No
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
Yes
Width
(mm)
185
Max. rated operation voltage Ue AC
(V)
690
Rated permanent current Iu
(A)
400
Rated operation power at AC-23, 400 V
(kW)
180
Conditioned rated short-circuit current Iq
(kA)
100
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Other
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Height
(mm)
75
Depth
(mm)
206
Version as reversing switch
No
Rated operating voltage
(V)
690 - 690
Rated permanent current at AC-21, 400 V
(A)
400
Rated operation power at AC-3, 400 V
(kW)
0
Rated short-time withstand current lcw
(kA)
12
Switching power at 400 V
(kW)
180
Colour control element
Other
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
333
Degree of protection (NEMA)
Other
With pre-assembled cabling
No
Stock and logistics
Height
0.085 m
Width
0.19 m
Depth
0.21 m
Packaging
item
Weight
1.761 kg
HS code
85365080
Country of Origin
NL
