Eaton
167620

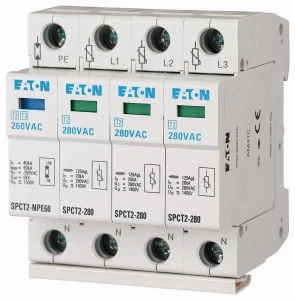

Surge protection device for power supply systems
Manufacturer part number: 167620
Serie: xPole
Type: SPCT2-280-3+NPE
EAN-code: 4015081640683
SKU Omnical: 1187847
Stock: 0.
Estimated lead time: 8 days *
PreOrder
M78
€
243,92
per item
€
177,82
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
167620 Eaton Surge protection device for power supply systems
Eaton Surge protection device for power supply systems Overspanningsafleider SPCT2-280-3+NPE
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
System configuration
Other
Type of poles
3+N/PE
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
280
Nominal voltage DC
(V)
0
Max. continuous voltage AC
(V)
280
Max. continuous voltage DC
(V)
0
Max. PV-voltage
(V)
0
Voltage protection level
(kV)
1.4
Voltage protection level L-N
(kV)
0
Voltage protection level N-PE
(kV)
0
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
25
Max. conductor cross section flexible (fine-strand)
(mm²)
35
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Short-circuit-proof
No
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
Yes
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-C-S
Yes
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
Yes
Number of conductors (without earthing)
3
Short-circuit breaking capacity (Isccr)
(kA)
0
Max. discharge surge current (8/20)
(kA)
40
Max. overcurrent protection device, parallel connection (fuse)
(A)
0
Max. overcurrent protection device, series connection (fuse)
(A)
125
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
(A)
0
Leakage-current free
No
Stock and logistics
Height
0.075 m
Width
0.073 m
Depth
0.086 m
Packaging
item
Weight
0.435 kg
HS code
85365080
Country of Origin
RO
