Eaton
062603
Switch disconnector
Manufacturer part number: 062603
Serie: P lastschakelaar
Type: P3-100/EA/SVB-SW
EAN-code: 4015080626039
SKU Omnical: 1046344
Stock:
20 items.
Delivery time: 1-2 business days.
InStock
M84
€
229,70
per item
€
164,01
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

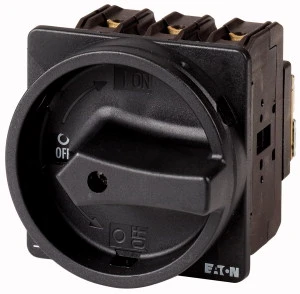

062603 Eaton Switch disconnector
Eaton Switch disconnector Hoofdschakelaar, 3-polig, 100 A, HOLD-functie, afsluitbaar in 0-stand,
Datasheet
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Width
(mm)
90
Max. rated operation voltage Ue AC
(V)
690
Rated permanent current Iu
(A)
100
Rated operation power at AC-23, 400 V
(kW)
55
Conditioned rated short-circuit current Iq
(kA)
80
Number of poles
3
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Door coupling rotary drive
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Height
(mm)
90
Depth
(mm)
130
Version as reversing switch
No
Rated operating voltage
(V)
690 - 690
Rated permanent current at AC-21, 400 V
(A)
100
Rated operation power at AC-3, 400 V
(kW)
37
Rated short-time withstand current lcw
(kA)
2
Switching power at 400 V
(kW)
55
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
100
Degree of protection (NEMA)
12
With pre-assembled cabling
No
Stock and logistics
Height
0.09 m
Width
0.105 m
Depth
0.13 m
Packaging
item
Weight
0.476 kg
HS code
85365080
Country of Origin
GB
