Disano
41300000
Downlight/spot/floodlight
Manufacturer part number: 41300000
Serie: CRIPTO
Type: 413000-00 25W/4000K
EAN-code: 8012952125467
SKU Omnical: 1402045
Stock: 0.
Estimated lead time: 5 days *
PreOrder
D76
€
336,00
per item
€
244,94
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

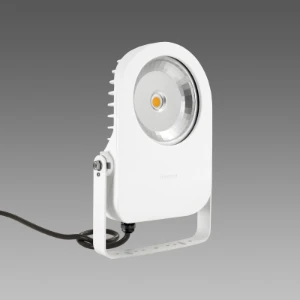

41300000 Disano Downlight/spot/floodlight
Disano Downlight/spot/floodlight 1710 CRIPTO CLD CELL GRAFIET
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Lamp type
LED not exchangeable
Suitable for number of lamps
1
Lamp holder
None
Type of control gear
LED operating device current-controlled
With control gear
Yes
Width
(mm)
218
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
Other
Reflector
Matt
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Length
(mm)
322
Height/depth
(mm)
60
Protection class
II
Degree of protection (IP)
IP66
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“
No
With movement sensor
No
With light source
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
Adjustability
Rotating and swivelling
With light sensor
No
Suitable for lamp power
(W)
25 - 25
Max. system power
(W)
28
Colour temperature
(K)
4000 - 4000
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
2654
Colour of light
White
Colour rendering index CRI
90-100
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for low voltage cable system
No
Surface protection
Powder coating
Material cover
Glass transparent
Surface brushed
No
LED nominal current at constant current
(mA)
700 - 700
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
Yes
Light distributor
Other
Light outlet
Direct
Energy efficiency class
A++
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated life time L80/B10 at 25 °C
(h)
50000
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 40
Luminous flux
(lm)
3052 - 3052
Power factor
0.9
Type of wiring
Ending
Number of poles
2
Conductor cross section
(mm²)
1.5
Connectable conductor cross section
(mm²)
1.5 - 2.5
Connection type
Other
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
95
Suitable for workplace according to EN 12464-1
No
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG0
Colour consistency (McAdam ellipse)
SDCM3
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Dimming DALI-2
No
Exchangeable control gear
No
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
80
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
(%)
70
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Suitable for wall mounting
Yes
Operation by Bluetooth
No
Stock and logistics
Height
0.365 m
Width
0.24 m
Depth
0.07 m
Packaging
box
Weight
2.4 kg
HS code
94051990
