Disano
15024239

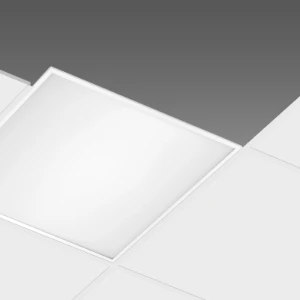

Ceiling-/wall luminaire
Manufacturer part number: 15024239
Serie:
Type: 150242-39
EAN-code: 8012952164534
SKU Omnical: 1631203
Stock: 0.
Estimated lead time: 5 days *
PreOrder
D71
€
78,00
per item
€
56,86
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
15024239 Disano Ceiling-/wall luminaire
Disano Ceiling-/wall luminaire 830 RODI CLD UGR<19
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for suspended mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Width
(mm)
595
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
(V)
220 - 240
Colour temperature
(K)
3000 - 3000
Material housing
Steel
Colour housing
White
Suitable for light line configuration
No
Material cover
Plastic, opal
Suitable for workplace according to EN 12464-1
Yes
Type of grid
None
Light sharing
Symmetric
Beam angle
Wide beam 41-80°
Light outlet
Direct
Length
(mm)
595
Height/depth
(mm)
34
Built-in length
(mm)
590
Built-in width
(mm)
590
Built-in height/depth
(mm)
-39
With movement sensor
No
With light sensor
No
Protection class
II
Degree of protection (IP)
IP40
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
(W)
39
With air slots
No
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
3722
Colour of light
White
Colour rendering index CRI
80-89
Surface protection housing
Lacquered
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
Other
Colour consistency (McAdam ellipse)
SDCM3
Rated ambient temperature according to IEC62722-2-1
(°C)
-10 - 40
Emergency power supply integrated
Yes
Filament test according to IEC 60695-2-11
None
Luminaire efficacy
(lm/W)
95
Power factor
0.95
Type of wiring
Ending
Number of poles
2
Connection type
Other
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
19
Dimming DALI-2
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Exchangeable control gear
Yes
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
(%)
80
Constant light output (CLO)
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Stock and logistics
Height
0.67 m
Width
0.67 m
Depth
0.35 m
Packaging
box
Weight
3 kg
HS code
94051990
