Conta-Clip
3501.2
Feed-through terminal block
Manufacturer part number: 3501.2
Serie: Z-Serie
Type: Veerdrukaansluiting
EAN-code: 4044211151690
SKU Omnical: 1178037
Stock:
7 items.
Delivery time: 1-2 business days.
InStock
XSJ
€
107,00
per 100 items
€
87,10
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
3501.2 Conta-Clip Feed-through terminal block

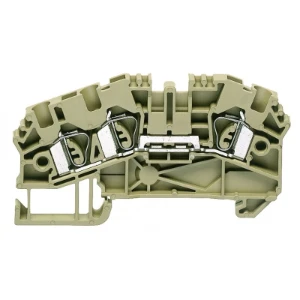

Conta-Clip Feed-through terminal block ZRK 2.5/3A BEIGE
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.5 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.5 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.5 - 4
Connectable conductor cross section multi-wired
(mm²)
0.5 - 4
Rated current In
(A)
24
Width
(mm)
5.1
Rated voltage
(V)
800
Type of electrical connection 1
Spring clamp connection
Type of electrical connection 2
Spring clamp connection
Connection position
Above
Number of levels
1
Number of clamp positions per level
3
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 120
Inflammability class of insulation material according to with UL94
V0
Width/grid dimension
(mm)
5.1
Height at lowest possible mounting height
(mm)
39
Length
(mm)
71.3
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Beige
Internally connected stages
No
Stock and logistics
Height
49 mm
Width
520 mm
Depth
81.3 mm
Packaging
box
Weight
1056 g
HS code
85369010
Country of Origin
DE
