Conta-Clip
1740.0
Rail terminal bar
Manufacturer part number: 1740.0
Serie: SVB-Serie
Type: Potentiaalvereffeningscontactdoos
EAN-code: 4044211143473
SKU Omnical: 1760014
Stock: 0.
Estimated lead time: 7 days *
PreOrder
XRV
€
15,83
per item
€
12,89
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

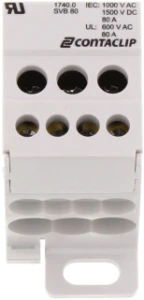

1740.0 Conta-Clip Rail terminal bar
Conta-Clip Rail terminal bar SVB 80
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
1
Connection type
Screwing
Width
(mm)
27
Mounting method
DIN-rail/screw
Height
(mm)
50
Depth
(mm)
66
Contact safe
Yes
Nominal current
(A)
80
Number of inputs
1
Number of outputs
6
Suitable for solid conductors
Yes
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for fine strand conductors without cable end sleeve
Yes
Suitable for extra fine-strand conductors
Yes
Suitable for extra fine-strand conductors without cable end sleeve
Yes
Conductor cross section, input
(mm²)
2.5 - 16
Conductor cross section, output
(mm²)
2.5 - 16
Conductor cross section, input AWG
4 - 8
Conductor cross section, output AWG
4 - 14
Stock and logistics
Height
60 mm
Width
37 mm
Depth
76 mm
Packaging
box
Weight
78.1 g
HS code
85369010
Country of Origin
FR
