Conta-Clip
1260.2
Sensor/actuator terminal block
Manufacturer part number: 1260.2
Serie: R-Serie
Type: Schroefaansluiting
EAN-code: 4044211035228
SKU Omnical: 1006989
Stock: 0.
Estimated lead time: 5 days *
PreOrder
XRR
€
343,19
per 100 items
€
257,39
per 100 items
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

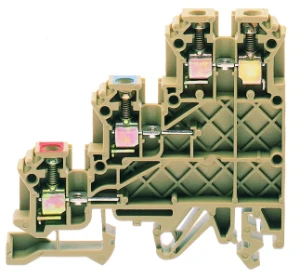

1260.2 Conta-Clip Sensor/actuator terminal block
Conta-Clip Sensor/actuator terminal block IK 2.5 BEIGE
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.2 - 4
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.2 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.2 - 4
Connectable conductor cross section multi-wired
(mm²)
0.2 - 4
Rated current In
(A)
24
Width
(mm)
5
Rated voltage
(V)
250
Number of levels
3
Number of clamp positions per level
4
Internally connected stages
No
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connection position
Sideways
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Thermoplastic
Operating temperature
(°C)
-40 - 105
Inflammability class of insulation material according to with UL94
V2
Width/grid dimension
(mm)
5
Height at lowest possible mounting height
(mm)
58.3
Length
(mm)
62.8
Explosion-tested version 'Ex e'
No
Closing plate required
Yes
Colour
Beige
LED switching for
No
With PE connection
No
With shield connection
No
With power supply function
No
Disconnect function
No
Stock and logistics
Height
68.3 mm
Width
510 mm
Depth
72.8 mm
Packaging
box
Weight
1189.1 g
HS code
85369010
Country of Origin
CZ
