Concord
4063831

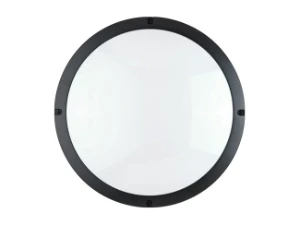

Ceiling-/wall luminaire
Manufacturer part number: 4063831
Serie: Sterling Bulkhead - LED
Type: STERLING IP65 1325LM 830 BK
EAN-code: 5026524638319
SKU Omnical: 1513326
Stock: 0.
Estimated lead time: 14 days *
PreOrder
X20
€
380,00
per item
€
277,02
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
4063831 Concord Ceiling-/wall luminaire
Concord Ceiling-/wall luminaire STER BLKHD LED 3K Zwart G2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
No
Suitable for surface mounting
No
With light source
Yes
Suitable for number of lamps
1
With control gear
No
Suitable for emergency lighting
No
Nominal voltage
(V)
230 - 240
Nominal current
(mA)
0 - 0
Colour temperature
(K)
3000 - 3000
Colour housing
Black
Suitable for light line configuration
No
Material cover
Plastic, opal
Beam angle
Open beam/diffuse
Height/depth
(mm)
128
Outer diameter
(mm)
350
Built-in length
(mm)
0
Built-in width
(mm)
0
Built-in height/depth
(mm)
0
Built-in diameter
(mm)
0
With movement sensor
No
With light sensor
No
Protection class
I
Degree of protection (IP)
IP65
Impact strength
IK10
Luminaire with limited surface temperature, sign "D“
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Voltage type
AC
Colour of light
White
Colour rendering index CRI
80-89
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
No
Operation by Bluetooth
No
No dim function
Yes
Light distributor
None
Rated life time L70/B50 at 25 °C
(h)
100000
Rated life time L90/B10 at 25 °C
(h)
68500
Rated life time L90/B50 at 25 °C
(h)
41400
Rated ambient temperature according to IEC62722-2-1
(°C)
-20 - 35
Emergency power supply integrated
No
Filament test according to IEC 60695-2-11
None
Suitable for lamp power
(W)
0 - 0
Luminaire efficacy
(lm/W)
78
Power factor
0.95
Type of wiring
Ending
Conductor cross section
(mm²)
0
Total harmonic distortion
0
Photobiological safety according to EN 62471
RG1
Unified Glare Ratio (UGR)
0
Dimming DALI-2
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Exchangeable control gear
No
Max. number of luminaires per miniature circuit breaker B16
37
Max. number of luminaires per miniature circuit breaker C16
61
Constant light output (CLO)
No
Colour temperature adjustable
No
Suitable for wall mounting
No
C
Compatible with Casambi
No
Stock and logistics
Height
13.5 cm
Width
36 cm
Depth
36 cm
Packaging
box
Weight
3.7 kg
HS code
94059900
