Concord
2093008
Downlight/spot/floodlight
Manufacturer part number: 2093008
Serie: Beacon LED XXL
Type: BCON XXL MB DALI 3K L3 BLK
EAN-code: 5025768930081
SKU Omnical: 1236510
Stock: 0.
Estimated lead time: 8 days *
PreOrder
X20
€
399,00
per item
€
290,87
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

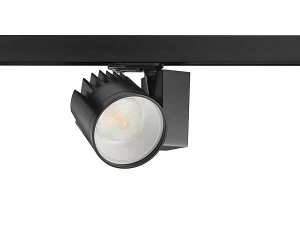

2093008 Concord Downlight/spot/floodlight
Concord Downlight/spot/floodlight BEACON XXL MB DALI 3K LS3 zw.
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for number of lamps
1
Type of control gear
Electronic ballast
With control gear
No
Width
(mm)
168
Nominal voltage
(V)
220 - 240
Material housing
Aluminium
Colour housing
Black
Reflector
None
Beam angle
Wide beam 41-80°
Length
(mm)
85
Height/depth
(mm)
205
Protection class
I
Degree of protection (IP)
IP20
Impact strength
Other
Luminaire with limited surface temperature, sign "D“
No
With movement sensor
No
With light source
Yes
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With light sensor
No
Suitable for lamp power
(W)
0 - 0
Max. system power
(W)
48
Colour temperature
(K)
3000 - 3000
Voltage type
AC
Rated luminous flux according to IEC 62722-2-1
(lm)
3670
Colour of light
White
Colour rendering index CRI
90-100
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for low voltage cable system
No
Surface brushed
No
LED nominal current at constant current
(mA)
0 - 0
Dimming depending on control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
No dim function
No
Light distributor
None
Light outlet
Direct
Total harmonic distortion
0
Rated life time L70/B50 at 25 °C
(h)
100000
Rated ambient temperature according to IEC62722-2-1
(°C)
0 - 0
Luminous flux
(lm)
3670 - 3670
Power factor
0.95
Built-in width
(mm)
0
Built-in height/depth
(mm)
0
Built-in length
(mm)
0
Conductor cross section
(mm²)
0
Connectable conductor cross section
(mm²)
0 - 0
Emergency power supply integrated
No
Luminaire efficacy
(lm/W)
76.46
Covering of the luminaire with thermally insulating material possible
No
Filament test according to IEC 60695-2-11
None
Photobiological safety according to EN 62471
RG1
Unified Glare Ratio (UGR)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Dimming DALI-2
No
Exchangeable control gear
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
(%)
0
Constant light output (CLO)
No
Colour temperature adjustable
No
Beam angle adjustable
No
Max. number of luminaires per miniature circuit breaker B16
20
Max. number of luminaires per miniature circuit breaker C16
0
Suitable for wall mounting
No
Built-in diameter
(mm)
0 - 0
E
Operation by Bluetooth
No
Stock and logistics
Height
20 cm
Width
19.5 cm
Depth
25 cm
Packaging
box
Weight
1.79 kg
HS code
94051190
