Comelit
1212/B
DC-power supply
Manufacturer part number: 1212/B
Serie: Accesoires kit
Type: Universeel
EAN-code: 8023903129601
SKU Omnical: 3312793
Stock: 0.
Estimated lead time: 7 days *
PreOrder
C92
€
100,50
per item
€
89,75
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

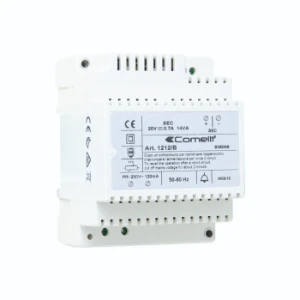

1212/B Comelit DC-power supply
Comelit DC-power supply Voedingstrafo t.b.v. monitor, input 230Vac / output 0-20Vdc 15VA (5 DI
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Voltage type of supply voltage
DC
1st secondary output voltage
(V)
20 - 22
2nd secondary output voltage
(V)
0 - 0
3rd secondary output voltage
(V)
0 - 0
Nominal value output current 1
(A)
0.4
Max. output current 1
(A)
0.7
Width
(mm)
72
Max. output current 2
(A)
0
Max. output current 3
(A)
0
Secondary voltage adjustable
No
Short-circuit-proof
No
Rated supply voltage at AC 50 Hz
(V)
220 - 240
Rated supply voltage at AC 60 Hz
(V)
0 - 0
Rated supply voltage at DC
(V)
20 - 22
Output voltage stabilized
No
Power consumption
(VA)
14
Power output
(W)
10
Stabilized
No
Type of electric connection
Screw-/spring clamp connection
Rail mounting possible
Yes
Wall mounting possible
Yes
Modular version
Yes
Width in number of modular spacings
4
Built-in height
(mm)
57
Direct mounting possible
Yes
Height
(mm)
90
Depth
(mm)
57
Suitable for safety functions
No
Performance level according to EN ISO 13849-1
None
Degree of protection (IP)
IP20
Nominal value output voltage 1
(V)
20
Nominal value output voltage 2
(V)
0
Nominal value output voltage 3
(V)
0
Nominal value output current 2
(A)
0
Nominal value output current 3
(A)
0
Built-in width
(mm)
72
SIL according to IEC 61508
None
Degree of protection (NEMA)
1
Stock and logistics
Height
7.5 cm
Width
8.7 cm
Depth
10 cm
Packaging
box
Weight
0.638 kg
HS code
85044090
