Belden
932140106

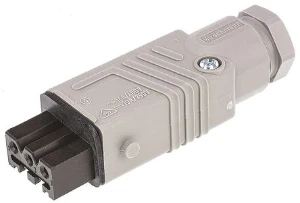

Rectangular connector, set (industrial connector)
Manufacturer part number: 932140106
Serie: Steker Ind. Applicatie
Type: STAK 3 N gray
EAN-code: 4002044206529
SKU Omnical: 1051423
Stock: 0.
Estimated lead time: 448 days *
PreOrder
I00
€
9,27
per item
€
6,03
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
932140106 Belden Rectangular connector, set (industrial connector)
Belden Rectangular connector, set (industrial connector) STAK 3 N gray
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact type
Bus
Height
(mm)
21
Width
(mm)
28.2
Number of plug-in contact rows
1
Rated current In
(A)
10
Ambient temperature
(°C)
-30 - 90
Rated voltage
(V)
400
Rated surge voltage
(kV)
4
Pollution degree
3
Connectable conductor cross section solid-core
(mm²)
0.75 - 0.75
Type of electric connection
Screw connection
Material of contact surface
Tin
Material contact
Brass
Material insulation body
Polyamide (PA)
Material housing
Plastic
Locking mechanism
Single locking lever
Mounting method
Surface mounting
Inflammability class of insulation material according to with UL94
HB
Operating temperature
(°C)
-30 - 90
Degree of protection (IP), mounted
IP54
Depth
(mm)
80
Number of poles
3
Coating housing
Uncoated
EMC-version
No
With sealing
Yes
Position cable feed
Sideways
Stock and logistics
Packaging
item
Weight
32.64 g
HS code
85366990
Country of Origin
CZ
