ASN Sontheimer
AE-A551977
Switch disconnector
Manufacturer part number: AE-A551977
Serie:
Type:
EAN-code: 6151201466462
SKU Omnical: 4331199
Stock: 0.
Estimated lead time: 9 days *
PreOrder
T36
€
1.606,83
per item
€
1.354,56
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

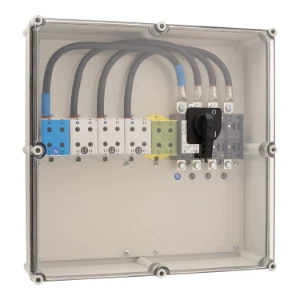

AE-A551977 ASN Sontheimer Switch disconnector
ASN Sontheimer Switch disconnector PV/AC Werkschakelaar 250A 4P IP65 1xAl-Cu-35-240mm2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Width
(mm)
540
Max. rated operation voltage Ue AC
(V)
690
Rated permanent current Iu
(A)
250
Rated operation power at AC-23, 400 V
(kW)
130
Conditioned rated short-circuit current Iq
(kA)
50
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Turn button
Type of electrical connection of main circuit
Bolt connection
Degree of protection (IP), front side
IP65
Height
(mm)
540
Depth
(mm)
170
Version as reversing switch
No
Rated operating voltage
(V)
400 - 690
Rated permanent current at AC-21, 400 V
(A)
250
Rated short-time withstand current lcw
(kA)
8
Switching power at 400 V
(kW)
130
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
250
Degree of protection (NEMA)
Other
With pre-assembled cabling
Yes
Width in number of modular spacings
0
Suitable for floor mounting
Yes
Colour housing
Grey
Stock and logistics
Packaging
box
HS code
85365080
