ASN Sontheimer
AE-A551824
Switch disconnector
Manufacturer part number: AE-A551824
Serie:
Type:
EAN-code: 6097041379329
SKU Omnical: 4331197
Stock: 0.
Estimated lead time: 9 days *
PreOrder
T36
€
145,44
per item
€
122,61
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

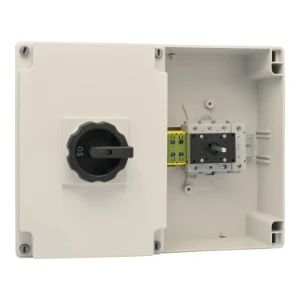

AE-A551824 ASN Sontheimer Switch disconnector
ASN Sontheimer Switch disconnector PV/AC Werkschakelaar 80A 4P IP65
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Width
(mm)
214
Max. rated operation voltage Ue AC
(V)
690
Rated permanent current Iu
(A)
80
Rated operation power at AC-23, 400 V
(kW)
30
Number of poles
4
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Turn button
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Height
(mm)
304
Depth
(mm)
181
Version as reversing switch
No
Rated operating voltage
(V)
24 - 690
Rated operation power at AC-3, 400 V
(kW)
22
Rated short-time withstand current lcw
(kA)
1260
Switching power at 400 V
(kW)
22
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
55
Degree of protection (NEMA)
Other
With pre-assembled cabling
No
Width in number of modular spacings
0
Suitable for floor mounting
Yes
Colour housing
Grey
Stock and logistics
Height
225 mm
Width
310 mm
Depth
195 mm
Packaging
box
HS code
85365080
