ASN Sontheimer
AE-A551373
Switch disconnector
Manufacturer part number: AE-A551373
Serie:
Type:
EAN-code: 6097046730729
SKU Omnical: 4331195
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YZJ
€
59,23
per item
€
28,79
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
AE-A551373 ASN Sontheimer Switch disconnector

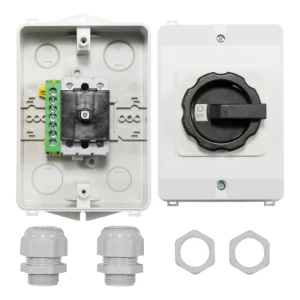

ASN Sontheimer Switch disconnector PV/AC Werkschakelaar 32A 2P IP65
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Width
(mm)
100
Max. rated operation voltage Ue AC
(V)
690
Rated permanent current Iu
(A)
32
Rated operation power at AC-23, 400 V
(kW)
11.5
Number of poles
2
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Type of control element
Turn button
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
Height
(mm)
161
Depth
(mm)
115
Version as reversing switch
No
Rated operating voltage
(V)
24 - 690
Rated permanent current at AC-21, 400 V
(A)
32
Rated operation power at AC-3, 400 V
(kW)
9.5
Rated short-time withstand current lcw
(kA)
500
Switching power at 400 V
(kW)
9.5
Colour control element
Black
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
22
Degree of protection (NEMA)
Other
With pre-assembled cabling
No
Width in number of modular spacings
0
Suitable for floor mounting
Yes
Colour housing
Grey
Stock and logistics
Height
105 mm
Width
165 mm
Depth
120 mm
Packaging
box
HS code
85365080
