ABB VanLien
7TCA091180R0213
Emergency luminaire
Manufacturer part number: 7TCA091180R0213
Serie: Aqualux
Type: AQL 03A/1/CIS/LS/LED
EAN-code: 8713812764276
SKU Omnical: 1250650
Stock: 0.
Estimated lead time: 28 days *
PreOrder
L53
€
555,00
per item
€
460,10
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

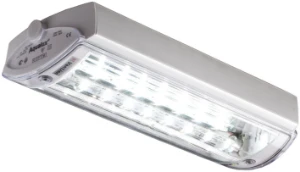

7TCA091180R0213 ABB VanLien Emergency luminaire
ABB VanLien Emergency luminaire Decentraal 3 watt, continu opbouw led armatuur met verwarmingselement
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Wall surface mounted
Lamp type
LED not exchangeable
Lamp holder
Other
Lamp power
(W)
3
Circuit
Other
Width
(mm)
170
Material housing
Plastic
Colour housing
Aluminium
Material cover
Plastic, transparent
Suitable for labelling type
Other
Monitoring equipment
Safety module for monitoring (central feeded system)
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Nominal voltage
(V)
220 - 230
Protection class
II
Degree of protection (IP)
IP65
With light source
Yes
Length
(mm)
381
Height/depth
(mm)
75
Outer diameter
(mm)
0
Built-in length
(mm)
0
Built-in width
(mm)
0
Built-in depth
(mm)
0
Built-in diameter
(mm)
0
Luminous flux at emergency operation
(lm)
119
Battery quality
NiCd
Voltage type
AC
Nominal current
(mA)
42.5 - 42.5
Autonomy
(h)
1
Rated luminous flux according to IEC 62722-2-1
(lm)
119
Colour of light
White
Colour temperature
(K)
6500 - 6500
Function
Escape route lighting
With pictogram
No
Suitable for number of lamps
1
Number of lighting heads
1
Type of control gear
LED operating device current-controlled
Light distributor
Refractor lens
Impact strength
IK10
Rated ambient temperature according to IEC62722-2-1
(°C)
-25 - 35
Max. system power
(W)
5.1
Luminous flux in standby mode
(lm)
119
Power factor
0.64
Nominal operation time
(h)
1 - 1
Built-in height/depth
(mm)
0
Type of wiring
Suitable for through wiring
Number of poles
6
Conductor cross section
(mm²)
2.5
Connection type
Screw connection
With remote control
Yes
Exchangeable control gear
Yes
RAL-number housing
9003
Stock and logistics
Height
0.111 m
Width
0.188 m
Depth
0.426 m
Packaging
Package
Weight
1.66 kg
HS code
94054990
