ABB VanLien
7TCA091160R0378

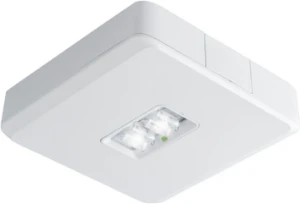

Emergency luminaire
Manufacturer part number: 7TCA091160R0378
Serie: Evago
Type: EVA-DLO
EAN-code: 8713812763712
SKU Omnical: 1213751
Stock: 0.
Estimated lead time: 21 days *
PreOrder
L53
€
299,00
per item
€
247,87
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7TCA091160R0378 ABB VanLien Emergency luminaire
ABB VanLien Emergency luminaire Decentraal 2 watt wit continu opbouw led armatuur, inclusief automatis
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Ceiling surface mounting
Lamp type
LED not exchangeable
Lamp holder
Other
Lamp power
(W)
2
Circuit
Other
Width
(mm)
150
Material housing
Aluminium
Colour housing
White
Material cover
Plastic, transparent
Suitable for labelling type
Other
Monitoring equipment
Automatic self test
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Nominal voltage
(V)
220 - 240
Protection class
II
Degree of protection (IP)
IP54
With light source
Yes
Length
(mm)
150
Height/depth
(mm)
35
Outer diameter
(mm)
0
Built-in length
(mm)
0
Built-in width
(mm)
0
Built-in depth
(mm)
0
Built-in diameter
(mm)
0
Luminous flux at emergency operation
(lm)
203
Battery quality
NiMH
Voltage type
AC
Nominal current
(mA)
15 - 15
Autonomy
(h)
1
Rated luminous flux according to IEC 62722-2-1
(lm)
203
Colour of light
White
Colour temperature
(K)
5600 - 5600
Colour rendering index CRI
70-79
Function
Escape route lighting
With pictogram
No
Suitable for number of lamps
1
Number of lighting heads
1
Type of control gear
LED operating device current-controlled
Light distributor
Focal lens
Rated ambient temperature according to IEC62722-2-1
(°C)
5 - 35
Max. system power
(W)
3
Luminous flux in standby mode
(lm)
203
Power factor
0.85
Nominal operation time
(h)
1 - 1
Built-in height/depth
(mm)
0
Type of wiring
Suitable for through wiring
Number of poles
8
Conductor cross section
(mm²)
2.5
Connection type
Plug-in connection
With remote control
No
Exchangeable control gear
Yes
Constant light output (CLO)
No
RAL-number housing
9003
Stock and logistics
Height
0.062 m
Width
0.165 m
Depth
0.222 m
Packaging
Package
Weight
0.961 kg
HS code
94054990
