ABB VanLien
7TCA091160R0006

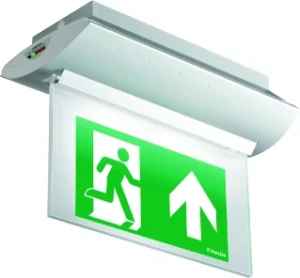

Emergency luminaire
Manufacturer part number: 7TCA091160R0006
Serie: Optilux
Type: OLN-1/ZT/LED/DZ
EAN-code: 8713812745435
SKU Omnical: 1115380
Stock: 0.
Estimated lead time: 21 days *
PreOrder
L54
€
305,00
per item
€
248,27
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
7TCA091160R0006 ABB VanLien Emergency luminaire
ABB VanLien Emergency luminaire Decentraal 2 watt, continu opbouw led armatuur, inclusief automatische
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
Ceiling surface mounting
Lamp type
LED not exchangeable
Lamp holder
Other
Lamp power
(W)
2
Circuit
Other
Width
(mm)
167
Material housing
Plastic
Colour housing
White
Material cover
Other
Type of indicator
Single/double-sided
Suitable for labelling type
Acrylic plate
Monitoring equipment
Automatic self test
Wiring system
Continuous circuit/emergency circuit
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Nominal voltage
(V)
220 - 230
Protection class
I
Degree of protection (IP)
IP40
With light source
Yes
Length
(mm)
364
Height/depth
(mm)
82
Outer diameter
(mm)
0
Built-in length
(mm)
0
Built-in width
(mm)
0
Built-in depth
(mm)
0
Built-in diameter
(mm)
0
Luminous flux at emergency operation
(lm)
0
Recognition distance
(m)
25
Battery quality
NiCd
Voltage type
AC
Nominal current
(mA)
42.5 - 42.5
Autonomy
(h)
1
Colour of light
White
Colour temperature
(K)
6350 - 6350
Colour rendering index CRI
60-69
Function
Escape route signage
With pictogram
No
Suitable for number of lamps
1
Number of lighting heads
1
Type of control gear
LED operating device current-controlled
Rated ambient temperature according to IEC62722-2-1
(°C)
0 - 35
Max. system power
(W)
5.1
Power factor
0.52
Nominal operation time
(h)
1 - 1
Built-in height/depth
(mm)
0
Type of wiring
Suitable for through wiring
Number of poles
6
Conductor cross section
(mm²)
2.5
Connection type
Screw connection
With remote control
No
Exchangeable control gear
Yes
Constant light output (CLO)
No
RAL-number housing
9003
Stock and logistics
Height
0.111 m
Width
0.188 m
Depth
0.426 m
Packaging
Package
Weight
1.297 kg
HS code
94054990
