ABB Components

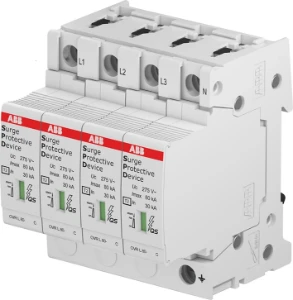

2CTB815708R4000
Surge protection device for power supply systems
Manufacturer part number: 2CTB815708R4000
Serie: System pro M compact
Type: OVR T2 4L 80-440s P TS QS
EAN-code: 3660308525598
SKU Omnical: 1602654
Stock: 0.
Estimated lead time: 42 days *
PreOrder
ZRH
€
595,00
per item
€
433,76
per item
EUR | Excluding VAT
Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CTB815708R4000 ABB Components Surge protection device for power supply systems
ABB Components Surge protection device for power supply systems Overspanning beveiliging OVR pro M compact OVR T2 4L 80-440s P TS QS
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
400
Max. continuous voltage AC
(V)
440
Max. continuous voltage DC
(V)
560
Voltage protection level
(kV)
3.6
Voltage protection level L-N
(kV)
3.6
Voltage protection level N-PE
(kV)
1.8
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Integrated backup fuse
Yes
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-C-S
Yes
System configuration TN-S
Yes
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
4
Short-circuit breaking capacity (Isccr)
(kA)
100
Max. discharge surge current (8/20)
(kA)
320
Max. overcurrent protection device, parallel connection (fuse)
(A)
160
Max. overcurrent protection device, series connection (fuse)
(A)
160
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
(A)
160
Leakage-current free
No
Stock and logistics
Height
0.082 m
Width
0.117 m
Depth
0.077 m
Packaging
Package
Weight
0.6 kg
HS code
85363090
Country of Origin
BG
