ABB Components
2CSR255165U1164

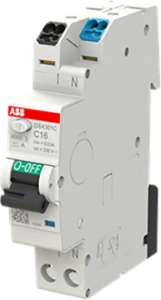

Earth leakage circuit breaker
Manufacturer part number: 2CSR255165U1164
Serie:
Type: DSX301C C16 A30
EAN-code: 8012542427858
SKU Omnical: 4288317
Stock: 0.
Estimated lead time: 50 days *
PreOrder
ZQY
€
185,00
per item
€
129,50
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CSR255165U1164 ABB Components Earth leakage circuit breaker
ABB Components Earth leakage circuit breaker DSX301C C16 A30 Aardlekautomaat
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
2
Number of protected poles
1
Rated voltage
(V)
230
Rated current
(A)
16
Rated fault current
(A)
0.03
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to IEC 60947-2
(kA)
6
Frequency
50 Hz
Release characteristic
C
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth
(mm)
69
Degree of protection (IP)
IP2X
Voltage type
AC
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity according to EN 61009
(kA)
6
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
100
Disconnection characteristic
Undelayed
Ambient temperature during operating
(°C)
-25 - 55
Power loss
(W)
2.48
Mounting method
DIN rail
Stock and logistics
Height
0.085 m
Width
0.018 m
Depth
0.069 m
Packaging
Package
Weight
0.11 kg
HS code
85363010
