ABB Components
1SAX341001R1102
Electronic overload relay
Manufacturer part number: 1SAX341001R1102
Serie: Thermische beveiliging
Type: EF 96-52
EAN-code: 4013614527715
SKU Omnical: 3054163
Stock:
1 item.
Delivery time: 1-2 business days.
InStock
ZQG
$
855.20
per item
$
580.68
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

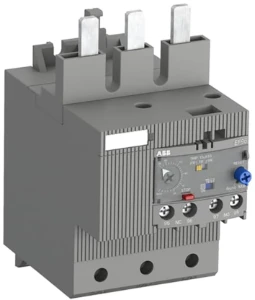

1SAX341001R1102 ABB Components Electronic overload relay
ABB Components Electronic overload relay EF96-56 Electro. overbelastingsrelais 20-56A, trip klasse instelbaar
Datasheet
Adjustable current range
(A)
20 - 56
Mounting method
Direct attachment
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Width
(mm)
70
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage at AC 50 Hz
(V)
0 - 0
Rated control supply voltage at AC 60 Hz
(V)
0 - 0
Rated control supply voltage at DC
(V)
0 - 0
Release class
Adjustable
Voltage type for actuating
Self powered
Height
(mm)
132.7
Depth
(mm)
105.2
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
External power supply required
No
Voltage type (operating voltage)
AC
Operating voltage at AC 50 Hz
(V)
1000 - 1000
Operating voltage at AC 60 Hz
(V)
1000 - 1000
Operating voltage at DC
(V)
1000 - 1000
Stock and logistics
Height
0.107 m
Width
0.139 m
Depth
0.076 m
Packaging
Package
Weight
0.802 kg
HS code
85364900
