ABB Busch-Jaeger
2CKA006800A2508

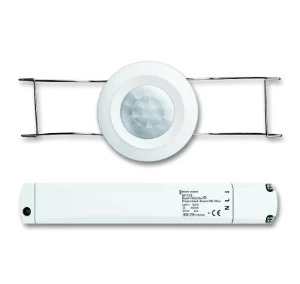

Movement sensor / presence detector complete
Manufacturer part number: 2CKA006800A2508
Serie: Busch-Wachter
Type: 6811 EB
EAN-code: 4011395133323
SKU Omnical: 2105056
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YST
€
147,30
per item
€
130,51
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
2CKA006800A2508 ABB Busch-Jaeger Movement sensor / presence detector complete
ABB Busch-Jaeger Movement sensor / presence detector complete BW Present Tech BasicLINE mini
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Width
(mm)
38
Creep-under protection
No
Networkable
No
Optimum mounting height
(m)
3
Staircase monitoring
Yes
Bridging switch
No
Max. transmission range sideways
(m)
3
Max. transmission range frontally
(m)
3
Diameter detection range on floor
(m)
6
Suitable for wireless transmission
No
Remote operation
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Other
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Transparent
No
Degree of protection (IP)
IP20
Voltage type
AC
Nominal voltage
(V)
230
Min. switch-on time
(s)
60
Max. duty cycle
(min)
15
Detection angle horizontal
(°)
360 - 360
Response value luminosity
(lx)
10 - 1000
Max. switching power
(W)
2000
Temperature
(°C)
0 - 45
Max. starting current
(A)
80
Substation input
No
Control current
(mA)
0
Frequency
(Hz)
50 - 60
With alarm function
No
Height
(mm)
38
Depth
(mm)
80
Sensor type
Passive infrared
With DALI interface
No
With remote control
No
Switch-off delay
(s)
0
Switching-on delay
(s)
0
Pivoting range sensor, horizontal
(°)
0 - 0
Pivoting range sensor, vertical
(°)
0 - 0
Suitable for C-load
Yes
Number of switching zones
76
Forced switch on
No
Scan angle
(°)
360
Suitable for ceiling mounting
Yes
Connection type
Screwed terminal
Anti-bacterial treatment
No
Built-in width
(mm)
27
Built-in depth
(mm)
77
Built-in length
(mm)
77
Built-in diameter
(mm)
32
Min. depth of built-in installation box
(mm)
77
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Nominal voltage
(V)
230 - 230
Stock and logistics
Height
0.118 m
Width
0.066 m
Depth
0.145 m
Packaging
Package
Weight
0.121 kg
HS code
85365080
